Product Description

📋

Basic Information

Model NO.

TP4056 module

Operating Temp.

-55℃ - 125℃

Shape

Flat

Technics

Semiconductor IC

MFR.

SEMILOTEC

D/C

25+

Package

module

Product Status

Active

Quality

Genuine New Original

Origin

China

HS Code

8542399000

Production Capacity

1000000PCS

🔍

Product Description

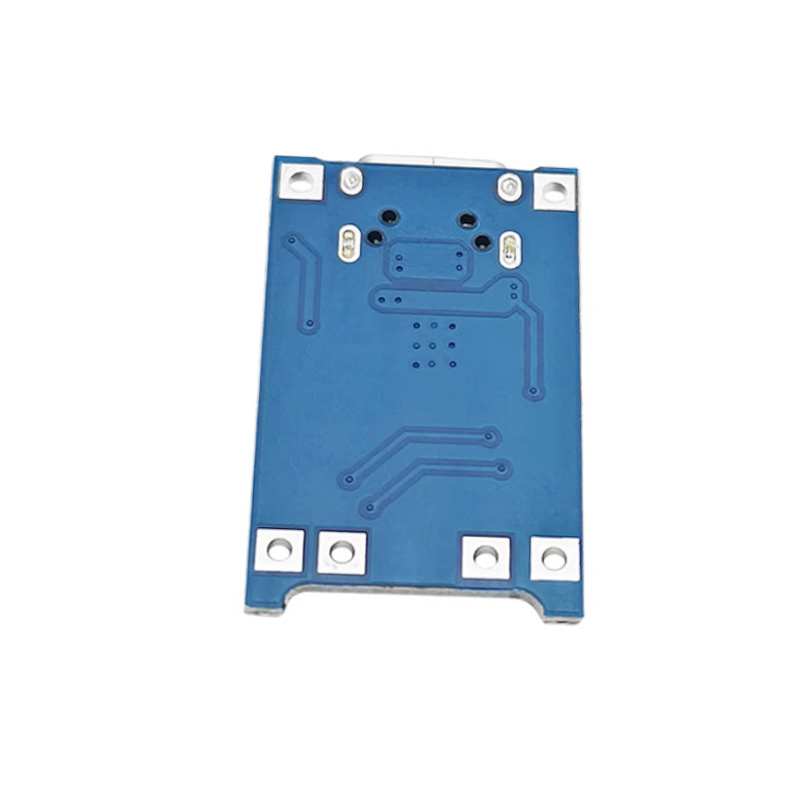

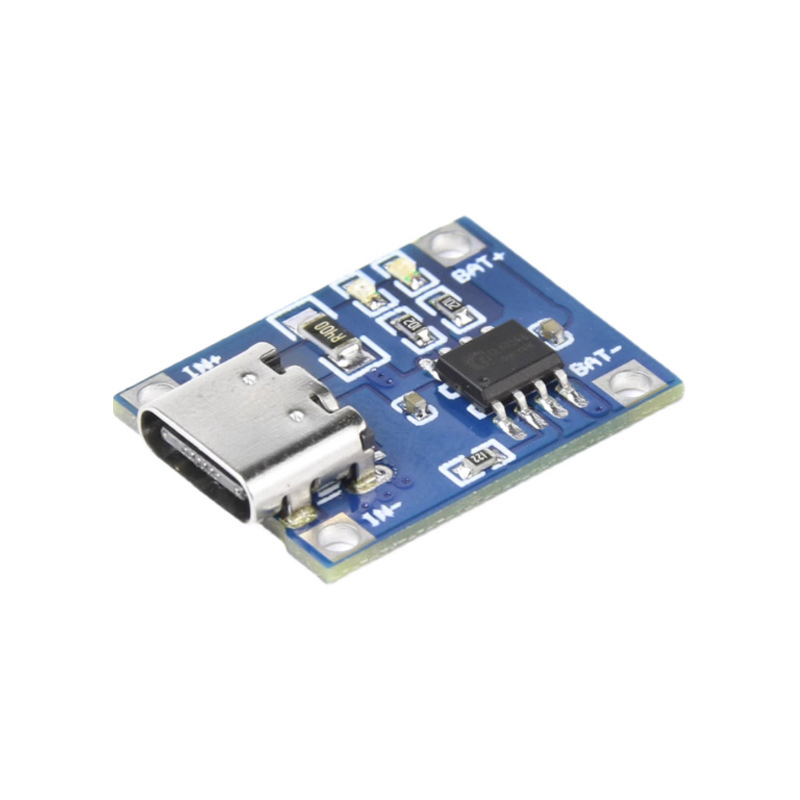

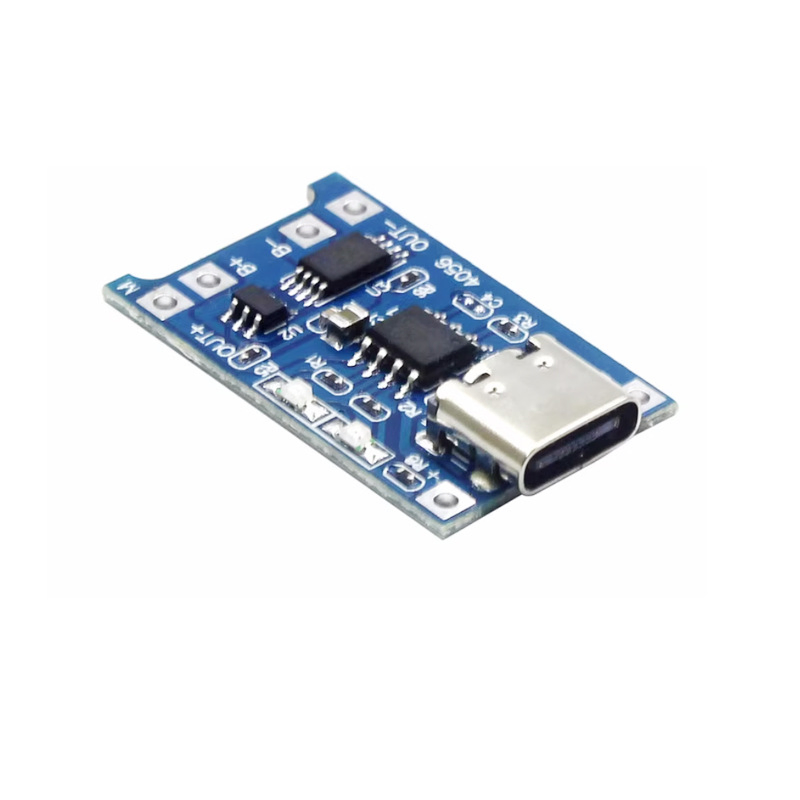

TP4056 1A Lithium battery charging protective module with TYPE-C connector

Connector: TYPE-C

Voltage: 5V

Charge cut-off voltage: 4.2V±1%

Charge current: 1000mA

Over-Discharge Protection: 2.5V

Battery overcurrent protection: 3A

Module size: 2.8*1.7cm

ROHS Status:

ROHS

TP4056 Diagram

TP4056 Application

TP4056 Module View

TP4056 PCB

TP4056 Connection

TP4056 Detail

📜

Certificates & Packing

Certificate

Packing Process

Product Packing Details

⭐

Why Choosing Us

Located in the core electronic market center of China.
100% guaranteed components quality: Genuine Original.
Sufficient stock to meet your urgent demand.
Sophisticated support to help solve problems and reduce risks.
Faster shipment: In-stock components can ship the same day.
Professional 24-hour service.

Notice: Product images are for reference only. For detailed pricing or more product inquiries, please reach out to our team.

❓

Frequently Asked Questions

1. What connector does this TP4056 module use for input?

This module is equipped with a TYPE-C connector for 5V power input.

2. What is the maximum charging current of the module?

The module provides a maximum charge current of 1000mA (1A).

3. Does the module include battery protection features?

Yes, it includes built-in over-discharge protection at 2.5V and battery overcurrent protection at 3A.

4. What is the charge cut-off voltage?

The charge cut-off voltage is precisely regulated at 4.2V ±1%.

5. What are the physical dimensions of the TP4056 module?

The compact module size is approximately 2.8cm * 1.7cm.

6. Is the quality of the components guaranteed?

Yes, we provide 100% Genuine New Original components with high-quality assurance.
